General Information | |
Manufacturer | Lantronix, Inc |
Manufacturer Part Number | EDS016PS-02 |
Manufacturer Website Address | http://www.lantronix.com |
Brand Name | Lantronix |
Product Model | EDS16PS |

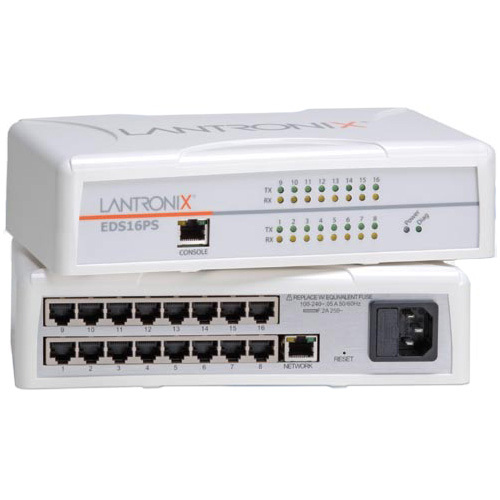

Product Name | EDS16PS Device Server |
Product Type | Device Server |
Media & Performance | |
Media Type Supported | Twisted Pair |
Network & Communication | |
Ethernet Technology | Fast Ethernet |
Network Standard | 10/100Base-TX |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Number of Network (RJ-45) Ports | 1 |
Physical Characteristics | |
Form Factor | Desktop |
Height | 1.7" |
Width | 8.9" |
Depth | 5" |
Weight (Approximate) | 1.10 lb |
Miscellaneous | |
Additional Information |
Processor:
Memory:
|
Green Compliant | Yes |
Green Compliance Certificate/Authority | RoHS |
Green Compliance Certificate/Authority | WEEE |
Warranty | |
Limited Warranty | 2 Year |
Mechanical | |
Dimensions: WxHxD (mm) | 560 x 480 x 200 |
Mounting | Rack Mount |
Enclosure | Metal |
Interface | |
Serial interface | RS232 |
Serial interface number of ports | 16 |
Serial Interface type of connector | RJ45 |
Network interface | 1 Port Ethernet RJ45 Connector |
Network interface number of ports | 1 |
Network interface type of connector | RJ45 |
Power | |
Power Input Type | Single AC / Plug |
Operating Supply Voltage | 100 to 240 VAC |
Power Consumption | 20W |
Reliability | |
Operating Temperature | 0 to 50C |
Isolation Protection | - |
Surge Protection | - |
Standards and Certifications | - |
Device Type | Device server |
Width | 8.9 in |
Depth | 5 in |
Height | 1.7 in |
Processor / Memory / Storage | |
Processors Installed | 1 x Intel IXP420 266 MHz |
Max Supported Qty | 1 |
RAM Installed ( Max ) | 64 MB SDRAM |
Flash Memory Installed (Max) | 8 MB flash |
Networking | |
Form Factor | External |
Ports Qty | 8 |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, LPR/LPD, ARP, SMTP, FTP, BOOTP, DHCP, DNS |
Remote Management Protocol | SNMP 2, Telnet, HTTP, HTTPS, SSH-2 |
Status Indicators | Link activity, power, transmit, receive |
Features | DHCP support, ARP support, IP address filtering |
Encryption Algorithm | AES, SSL 3.0, 128-bit AES |
Authentication Method | Secure Shell v.2 (SSH2) |
Compliant Standards | IEEE 802.3, IEEE 802.3u |
Expansion / Connectivity | |
Interfaces | 8 x serial - RS-232 - RJ-45 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 1 x management - RJ-45 |
Miscellaneous | |
Compliant Standards | CE, VCCI, C-Tick, EN55022, ICES-003, EN55024, EN55022 Class A, FCC Part 15 B, UL 60950-1, CSA C22.2 No. 60950-1-03 |
Power | |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Operational | 20 Watt |
Software / System Requirements | |
OS Required | Microsoft Windows 98/ME/NT/2000/XP |
Manufacturer Warranty | |
Service & Support | 2 years warranty |
Service & Support Details | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 131 °F |
Humidity Range Operating | 5 - 95% |
