GIGABYTE
Gigabyte VCX GV-R68XTGAMING OC-16GD Radeon RX 6800 XT GAMING OC 16G GDDR6 ATX
Mfg Part Number: GV-R68XTGAMING OC-16GD , Item #: 4101976
, PO and Wire.

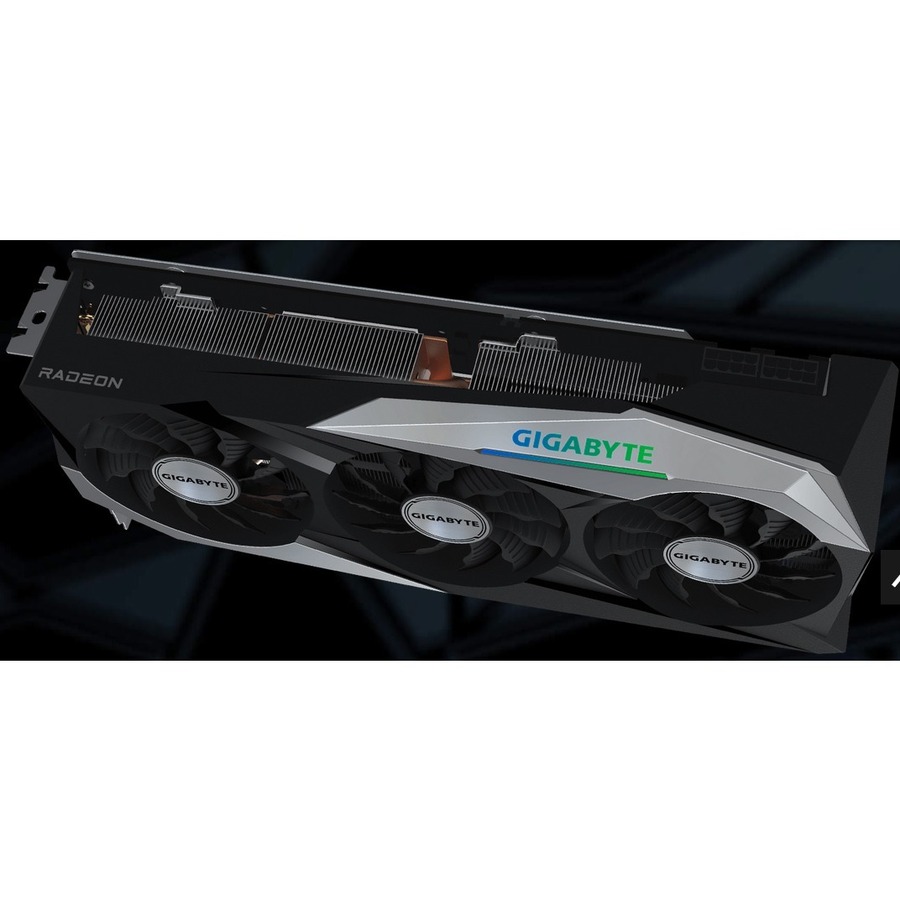

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 6 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

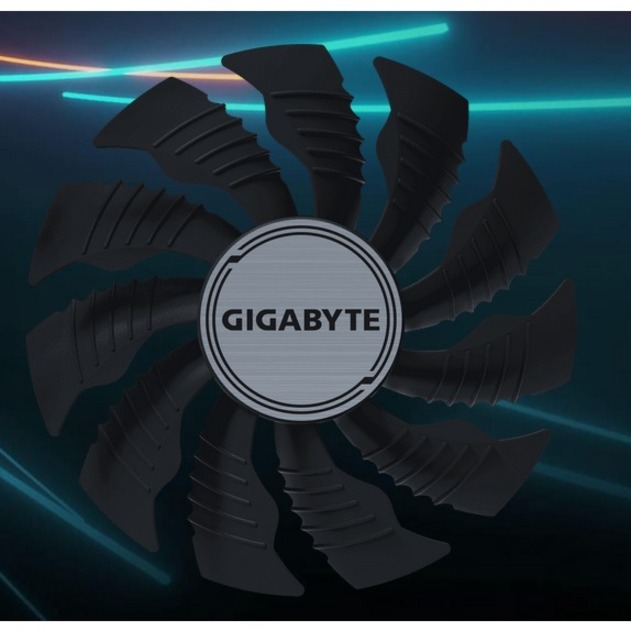

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

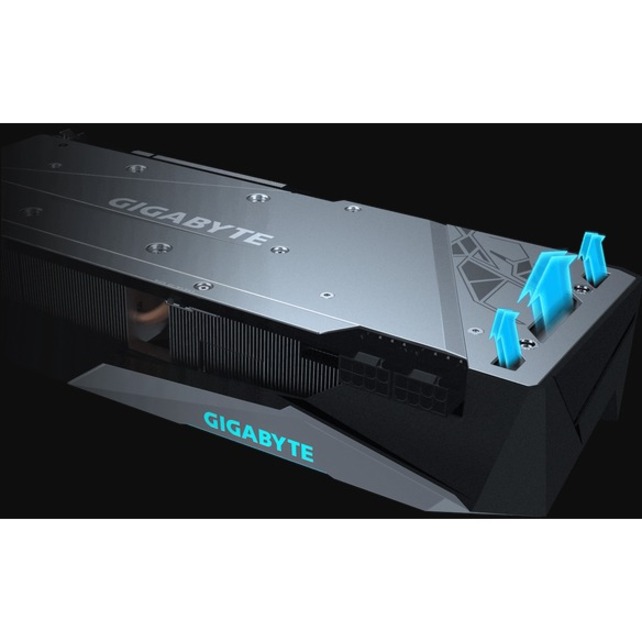

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

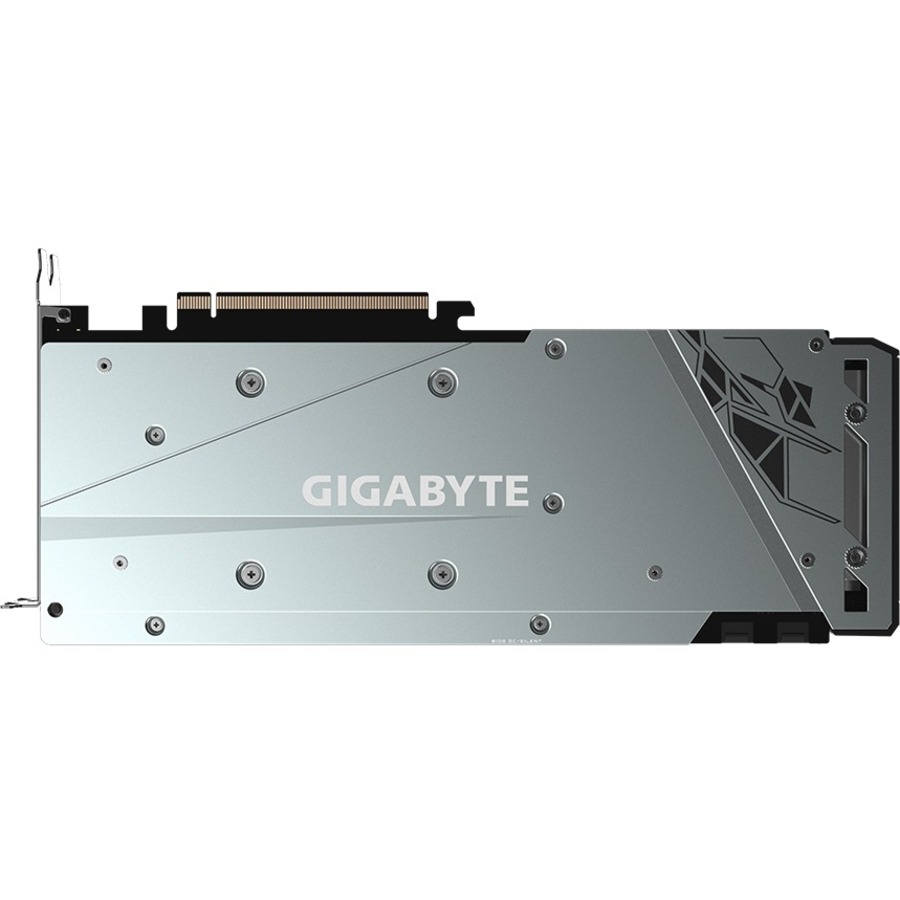

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

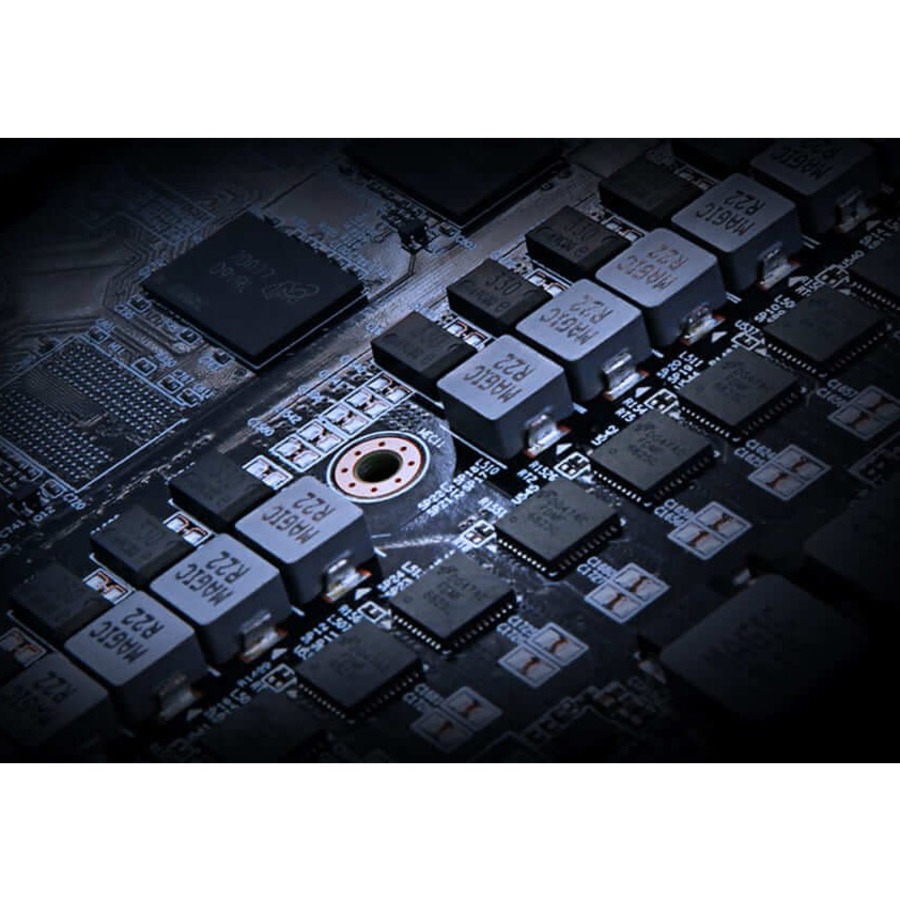

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game's requirements.
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GV-R68XTGAMING OC-16GD |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Model | GV-R68XTGAMING OC-16GD |
| Product Name | Radeon RX 6800 XT GAMING OC 16G Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | OpenGL 4.6 |
| API Supported | DirectX 12 Ultimate |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Line | Radeon |
| Chipset Series | RX 6000 |
| Chipset Model | RX 6800 XT |
| GPU Boost Clock | 2.29 GHz |
| Game Clock | 2.05 GHz |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | GDDR6 |
| Bus Width | 256 bit |
| Interfaces/Ports | |
| Host Interface | PCI Express 4.0 x16 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| Power Description | |
| Power Supply Wattage | 750 W |
| Power Connector | 2x 8-pin |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 2.3" |
| Width | 4.6" |
| Length | 11.3" |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
