Next generation MicroScanner verifies voice/data/video cable and services with a revolutionary user interface.

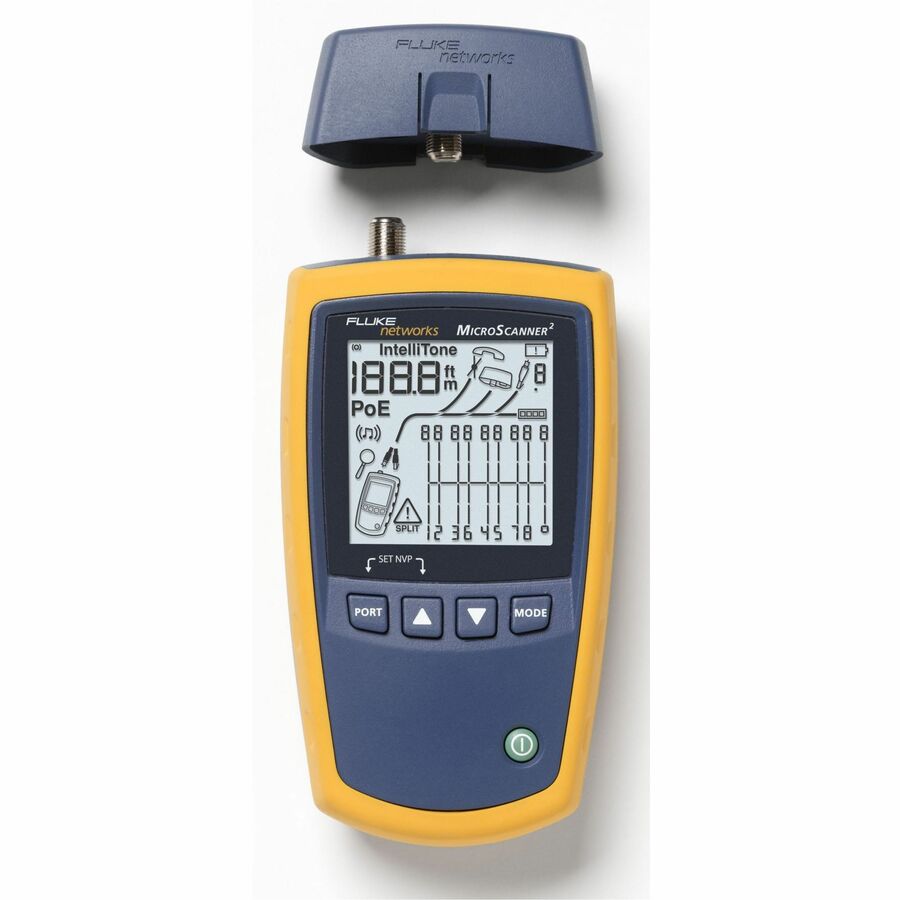

The MicroScanner2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing. It starts by taking results from what was four different test modes and displaying them all at once graphical wiremap, pair lengths, distance to fault, cable ID, and far end device. What's more, its integrated RJ11, RJ45, and coax test ports support virtually any type of low-voltage cable testing with no need for awkward adapters. The end result is reduced test time and technician error. That makes high-quality installations more efficient than ever.
| General Information | |
| Manufacturer | Fluke Networks |
| Manufacturer Part Number | MS2-100 |
| Manufacturer Website Address | http://www.flukenetworks.com |
| Brand Name | Fluke Networks |
| Product Name | MicroScanner2 Cable Verifier |
| Product Type | Cable Analyzer |
| Technical Information | |
| Minimum Length Measurement | 11.81" |
| Maximum Length Measurement | 1509.19 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Display & Graphics | |
| Display Screen Type | LCD |
| Physical Characteristics | |
| Height | 3" |
| Width | 6.4" |
| Depth | 1.4" |
| Weight (Approximate) | 12.80 oz |
| Miscellaneous | |
| Additional Information | Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
| Warranty | |
| Limited Warranty | 1 Year |
