General Information | |
Manufacturer | Hanwha Group |
Manufacturer Part Number | QNV-6082R |
Manufacturer Website Address | http://www.hanwha.com |
Brand Name | Wisenet |
Product Series | Q |
Product Model | QNV-6082R |

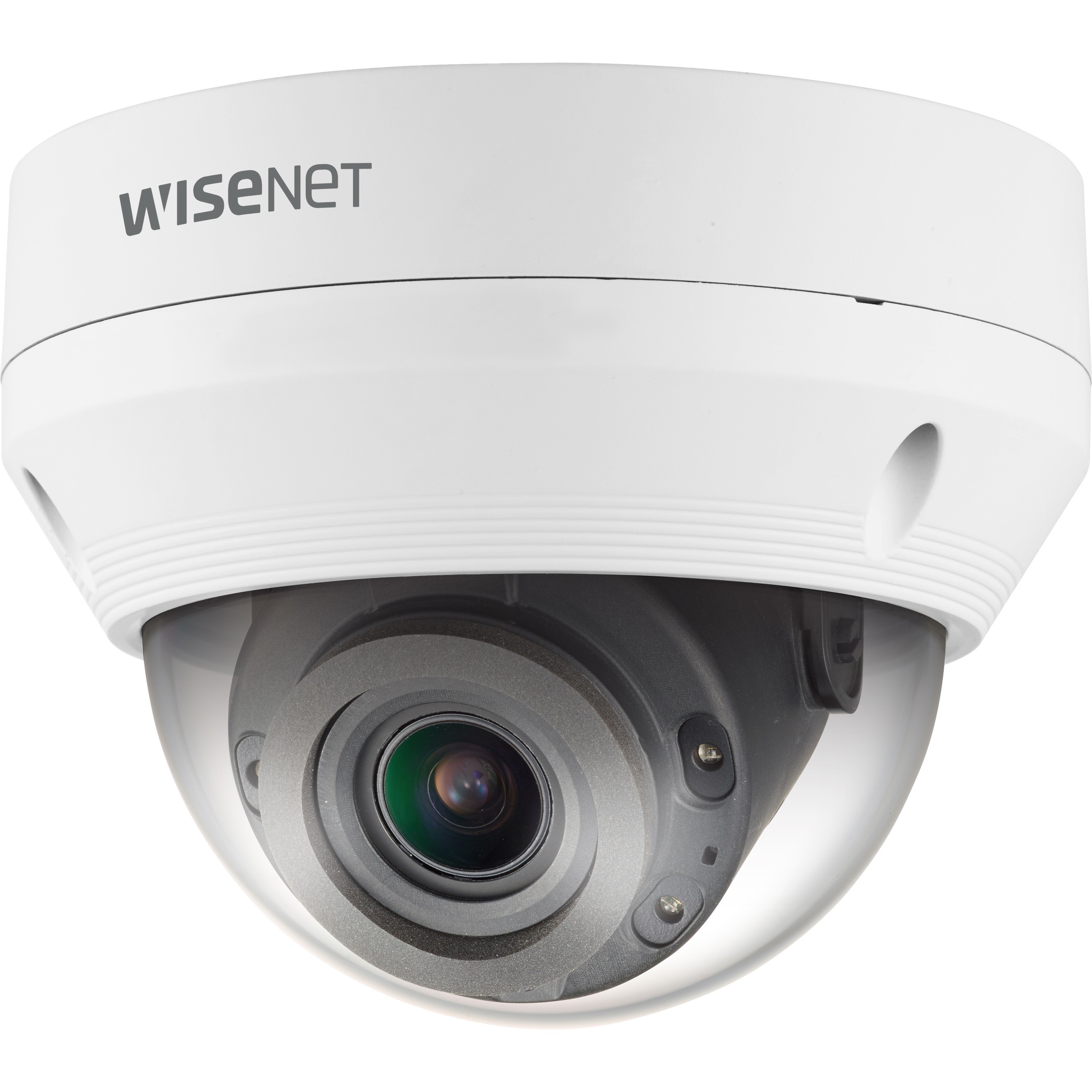

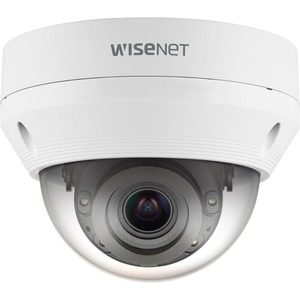

Product Name | 2MP Network IR Dome Camera |
Product Type | Network Camera |
Technical Information | |
Recording Formats | Full HD |
HD Recording | Yes |
Night Vision | Yes |
Night Vision Distance | 98.43 ft |
Night Vision Type | Infrared |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Field of View | H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele) |
Effective Camera Resolution | 2 Megapixel |
Video | |
Video Formats | H.265 |
Video Formats | H.264 |
Video Formats | MJPEG |
Maximum Video Resolution | 1920 x 1080 |
Maximum Frame Rate | 30 fps |
Lens | |
Lens Type | Zoom |
Minimum Focal Length | 3.20 mm |
Maximum Focal Length | 10 mm |
Lens Included | Yes |
Minimum Aperture | f/2.9 |
Maximum Aperture | f/1.6 |
Optical Zoom | 3.1x |
Exposure | |
Shortest Shutter Speed | 1/12000 Second |
Longest Shutter Speed | 1/5 Second |
Network & Communication | |
Connectivity Technology | Wired |
Remote Management | Yes |
Storage | |
Storage Type | Memory Card |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Power Description | |
Input Voltage | 12 V DC |
Power Source Type | DC |
Power Source Type | PoE |
Physical Characteristics | |
Mount Type | Wall Mount |
Mount Type | Ceiling Mount |
Form Factor | Dome |
Color Family | White |
Product Color | White |
Height | 4.2" |
Diameter | 5.4" |
Weight (Approximate) | 1.57 lb |
Environmental Conditions | |
Minimum Operating Temperature | -22°F (-30°C) |
Maximum Operating Temperature | 131°F (55°C) |
Maximum Operating Humidity | 90% |
Miscellaneous | |
Features | Day/Night |
Features | Built-in IR LED |
Features | Wide Dynamic Range |
Features | SD Card Local Storage |
Features | Back Light Compensation (BLC) |
Impact Protection Rating | IK10 |
Ingress Protection Rating | IP66 |
NDAA Compliant | Yes |
Warranty | |
Limited Warranty | 3 Year |
