Easily connect multiple HDMI sources to a single display.

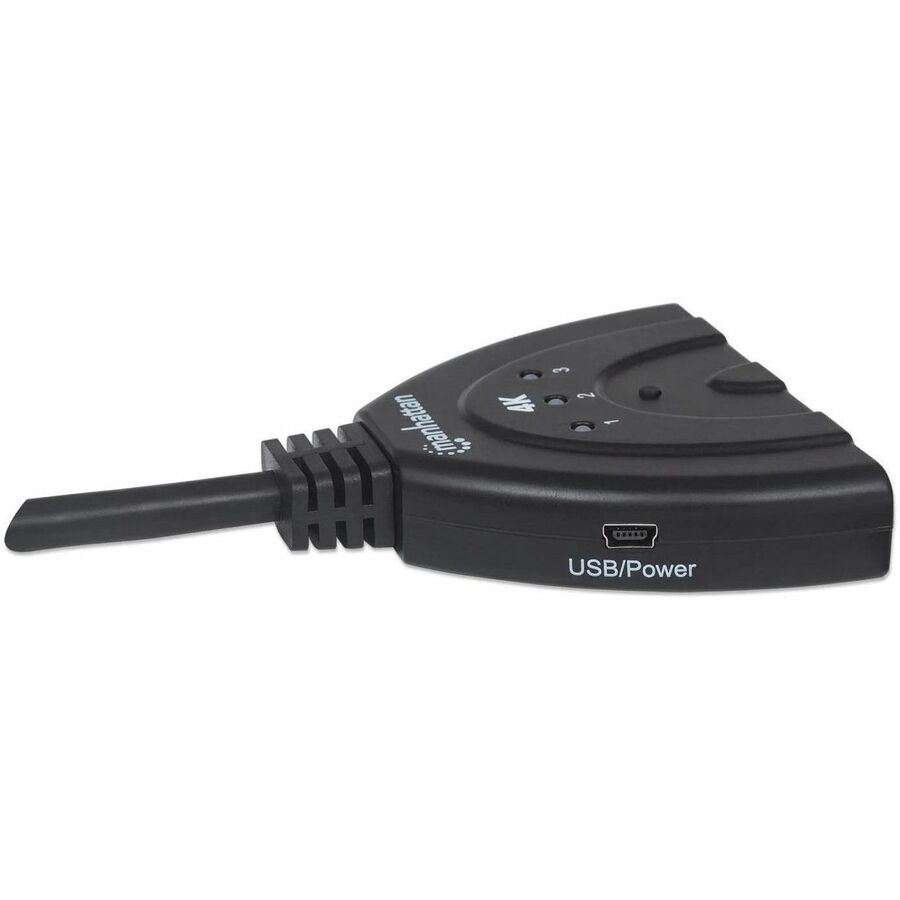

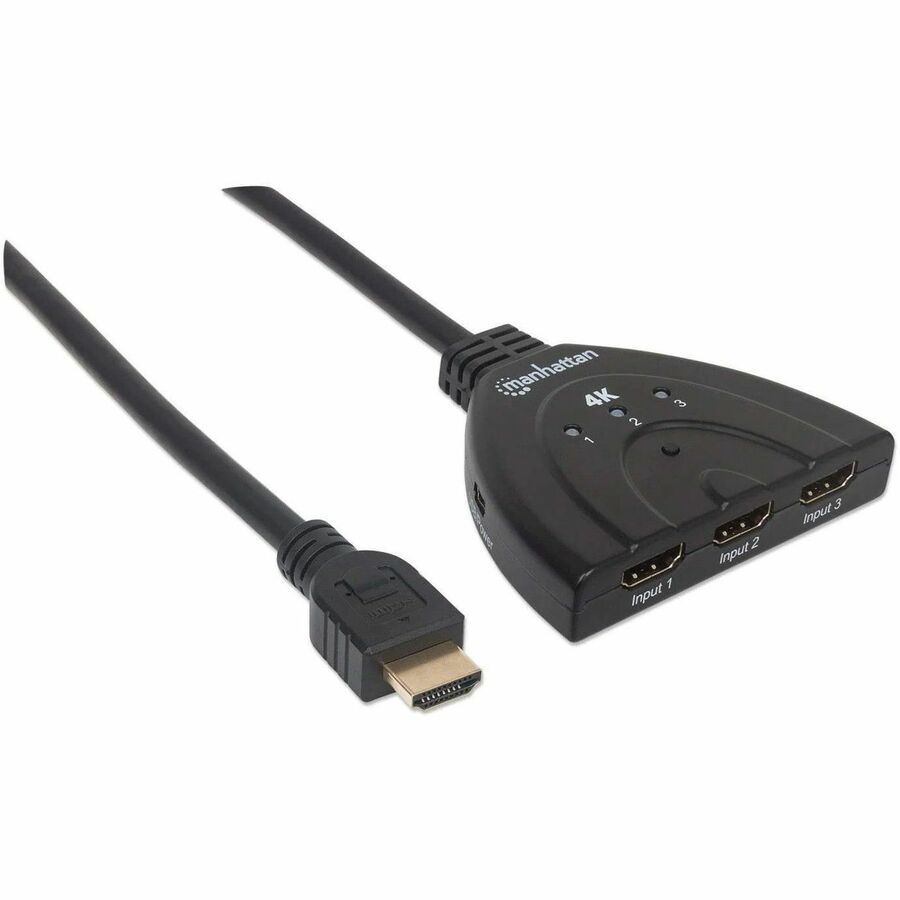

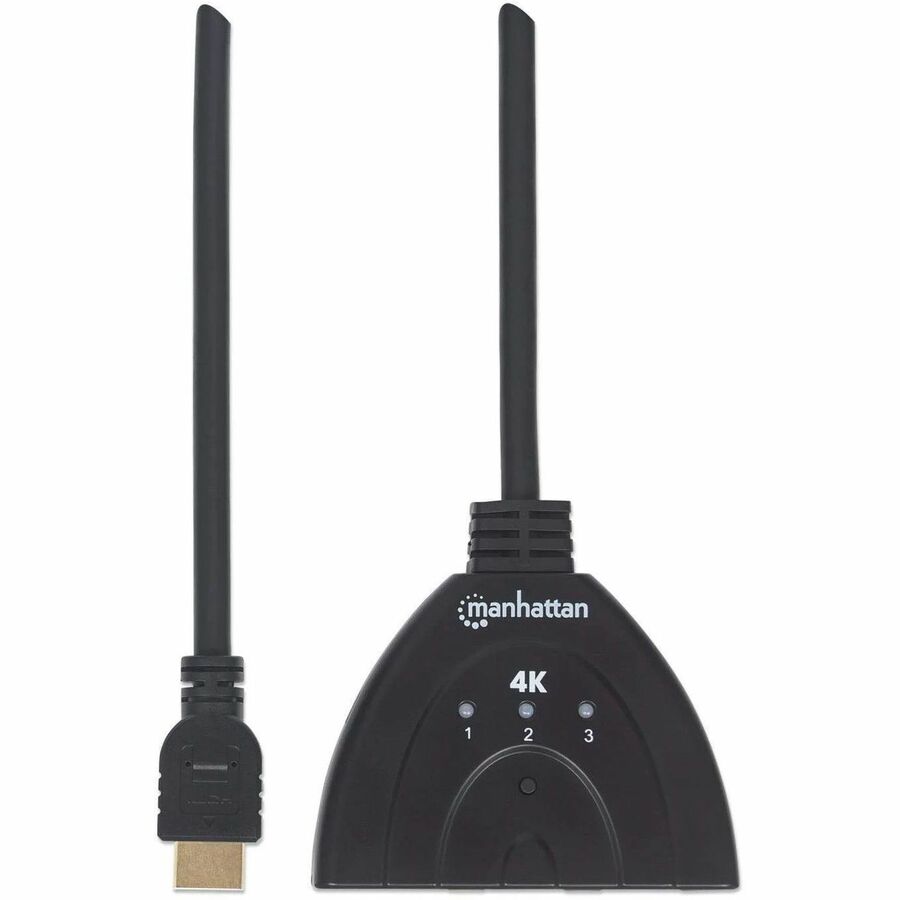

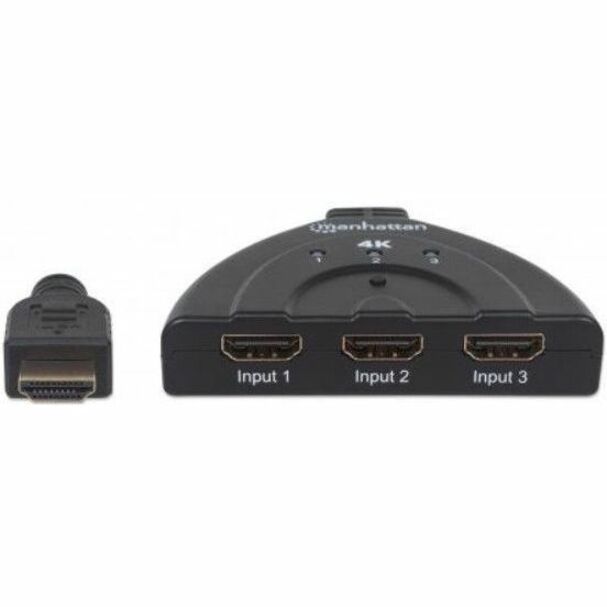

The Manhattan 4K 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources - including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices - to a single Ultra-High-Definition (UHD) display.
Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 4K 3-Port HDMI Switch expands the connectivity options for your UHDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it offers a switching button so you can manually select sources when more than one UHD video source is on at the same time.
Best Possible Image Quality
Full compliance with HDMI and HDCP 2.2/1.4 ensures the Manhattan 4K 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 4K resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
Features:
- Connects up to three Ultra-High-Definition (UHD) video sources to a single HDMI display
- Supports automatic switching (when an UHD signal is detected) and manual switching (between sources with the push of a button)
- 4K@60Hz resolution, full 3D video, Deep Color and High Dynamic Range (HDR)
- Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
- Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling and YCbCr 4:2:0 color formatting
- Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
- Works with PlayStation and Xbox game systems, Blu-ray players, set topboxes, satellite receivers and more
- HDCP compliant
- Plug and play
- Plug and play: no special setup, power or remote required
- Integrated HDMI cable
- Gold-plated contacts
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
| General Information | |
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 207874 |
| Manufacturer Website Address | http://www.icintracom.com |
| Brand Name | Manhattan |
| Product Name | 4K 3-Port HDMI Switch |
| Package Type | Retail |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Device Supported | Set-top Box |
| Device Supported | Projector |
| Device Supported | Display |
| Device Supported | Gaming Console |
| Device Supported | Blu-ray Disc Player |
| Device Supported | Satellite Receiver |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | 4K UHD |
| Graphics Modes | 2K |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Scan Format | 1080p |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Maximum Operating Distance | 32.81 ft |
| Physical Characteristics | |
| Height | 0.6" |
| Width | 2.4" |
| Depth | 3.2" |
| Weight (Approximate) | 3.17 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
