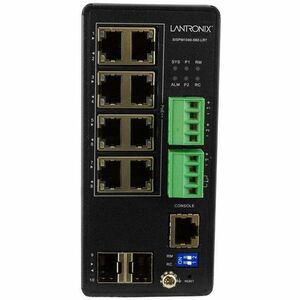

The SISPM1040-582-LRT is a managed PoE++ switch suitable for connecting and powering devices in hardened environments. It has (8) 10/100/1000 PoE++ ports with (2) 100/1000 dual speed SFP slots. The switch can supply up to 90 Watts per port on (4) ports or 60 Watts per port on (8) ports simultaneously. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire PoE+ network. Lantronix ' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.

General Information
Manufacturer	Lantronix, Inc
Manufacturer Part Number	SISPM1040582LRT
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Model	SISPM1040-582-LRT
Product Name	Managed Hardened Gigabit Ethernet PoE++ Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	8
Network (RJ-45)	Yes
Modular	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet PoE++
Port/Expansion Slot Details	2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X
Network Technology	10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots	2
Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	No
Number of SFP Slots	2
Network & Communication
Layer Supported	4
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.1ad
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.3bt
Networking Standards	IEEE 802.3ah
Networking Standards	IEEE 802.1ag
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.1D
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	480 W
Input Voltage	57 V DC
Input Voltage	52 V DC
Power Source	DC
Power Consumption	13 W
Physical Characteristics
Form Factor	Wall Mountable
Form Factor	DIN Rail Mountable
Height	5.3"
Width	2.4"
Depth	5.1"
Miscellaneous
Package Contents	Managed Hardened Gigabit Ethernet PoE++ Switch Din Rail Bracket
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	5 Year
