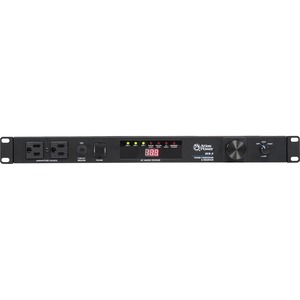

The ECS-3 has been designed to meet most installation requirements for AC power distribution and equipment power protection. The 15A compact 1 RU unit features three sequential timing sections that can be activated via the unit, or remotely. Front panel activation is via a momentary switch, while rear activation is via a momentary contact closure, or by 5-24VDC trigger feed.
AC Mains Voltage can be monitored via the front panel from the precision Digital Volt Meter. To light your rack, the ECS-3 has incorporated a front panel pull-out dimmable LED tube light. The rear of the rack can be illuminated by the optional 16" gooseneck LED lamp connected via an XLR style socket. LED lamps are far superior in longevity along with heat reduction when compared to traditional incandescent lamps and the XLR base mounts are also superior to the commonly used BNC type base. If a 15A AC Mains power source is not enough to meet the amperage demand of your system, the ECS-3 provides a sequenced 24VDC output that can be used to trigger other devices such as the AtlasIED ECM-20SH 20A stand alone AC power module.
AC Mains Voltage can be monitored via the front panel from the precision Digital Volt Meter. To light your rack, the ECS-3 has incorporated a front panel pull-out dimmable LED tube light. The rear of the rack can be illuminated by the optional 16" gooseneck LED lamp connected via an XLR style socket. LED lamps are far superior in longevity along with heat reduction when compared to traditional incandescent lamps and the XLR base mounts are also superior to the commonly used BNC type base. If a 15A AC Mains power source is not enough to meet the amperage demand of your system, the ECS-3 provides a sequenced 24VDC output that can be used to trigger other devices such as the AtlasIED ECM-20SH 20A stand alone AC power module.
Main Specification
| General Information | |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | ECS-3 |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | Atlas Sound |
| Product Model | ECS-3 |
| Product Name | 15A Power Sequencer and Conditioner |
| Product Type | PDU |
| Technical Information | |
| Input Receptacles | 1 |
| Protection Type | EMI Filter |
| Protection Type | Over Voltage |
| Protection Type | Power Protection |
| Protection Type | RFI Filter |
| Protection Type | Spike Protection |
| Protection Type | Surge Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 24 V DC |
| Power Rating (Watt) | 1800 W |
| Input Current | 15 A |
| Circuit Breaker | Yes |
| Physical Characteristics | |
| Placement | Rack |
| Rack Height | 1U |
| Height | 1.8" |
| Width | 19" |
| Depth | 8.5" |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
