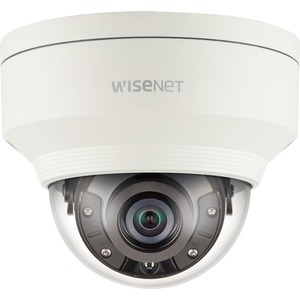

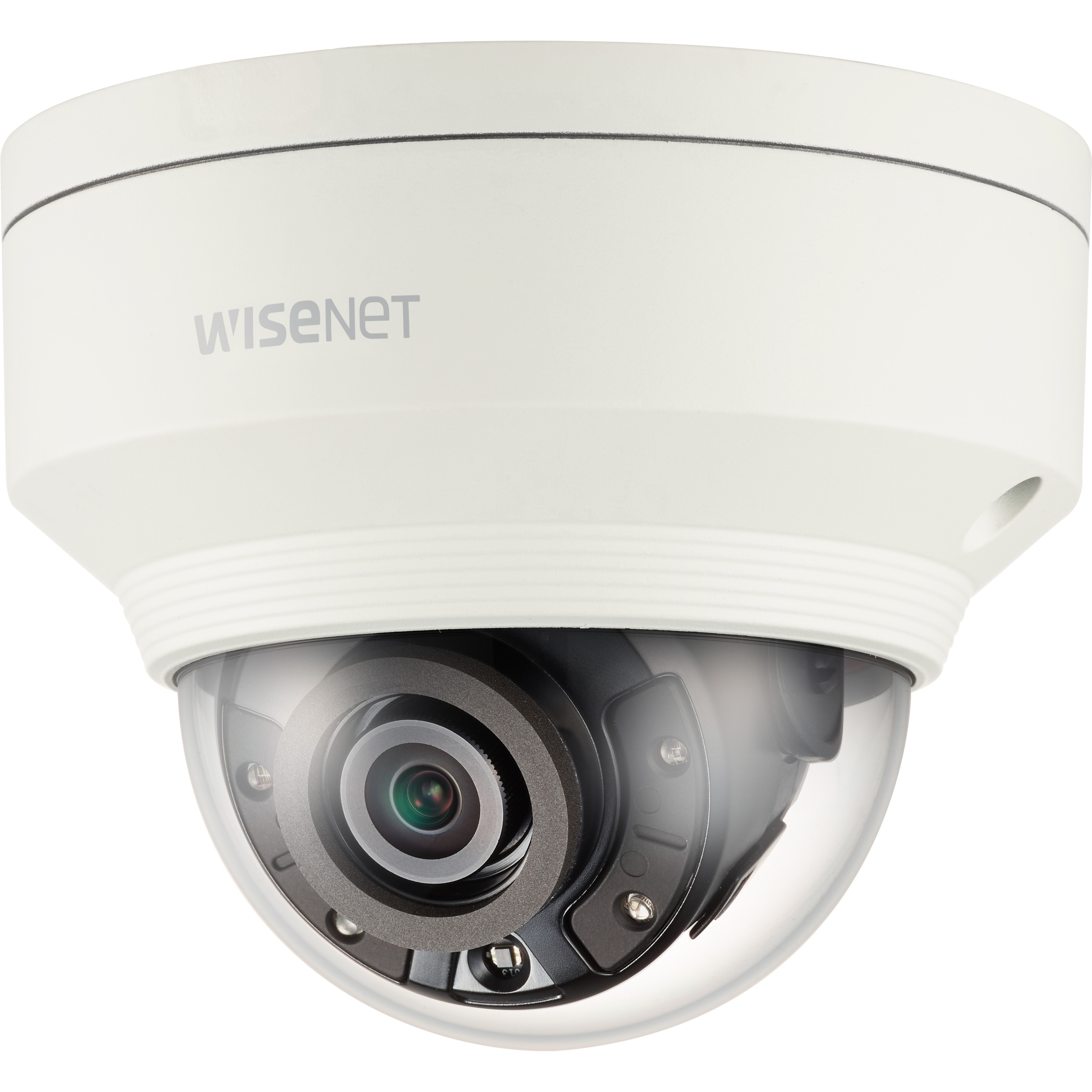

WiseNet X powered by WiseNet 5 network outdoor vandal dome camera, 2MP, Full HD(1080p) @60fps WDR off or @30fps WDR on, 4mm fixed lens (88.6°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X
General Information | |
Manufacturer | Hanwha Group |
Manufacturer Part Number | XNV-6020R |
Manufacturer Website Address | http://www.hanwha.com |
Brand Name | Hanwha Techwin |
Product Line | WiseNet |
Product Series | X |
Product Model | XNV-6020R |
Product Name | 2M Vandal-Resistant Network Dome Camera |
Product Type | Network Camera |
Technical Information | |
HD Recording | Yes |
Night Vision Distance | 98.43 ft |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Color Supported | Monochrome |
Effective Camera Resolution | 2 Megapixel |
Video | |
Video Formats | H.264 |
Video Formats | H.265 |
Video Formats | MPEG-4 AVC |
Video Formats | Motion JPEG |
Maximum Video Resolution | 1920 x 1080 |
Lens | |
Maximum Focal Length | 4 mm |
Network & Communication | |
Connectivity Technology | Cable |
Remote Management | Yes |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Physical Characteristics | |
Placement | Corner Mount |
Placement | Parapet Mount |
Placement | Pole Mount |
Placement | Wall Mount |
Form Factor | Dome |
Height | 3.8" |
Diameter | 4.7" |
Weight (Approximate) | 1.36 lb |
Warranty | |
Limited Warranty | 3 Year |
