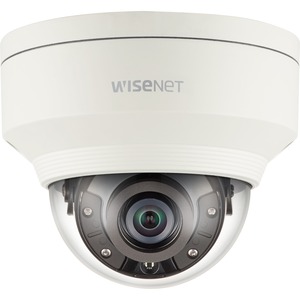

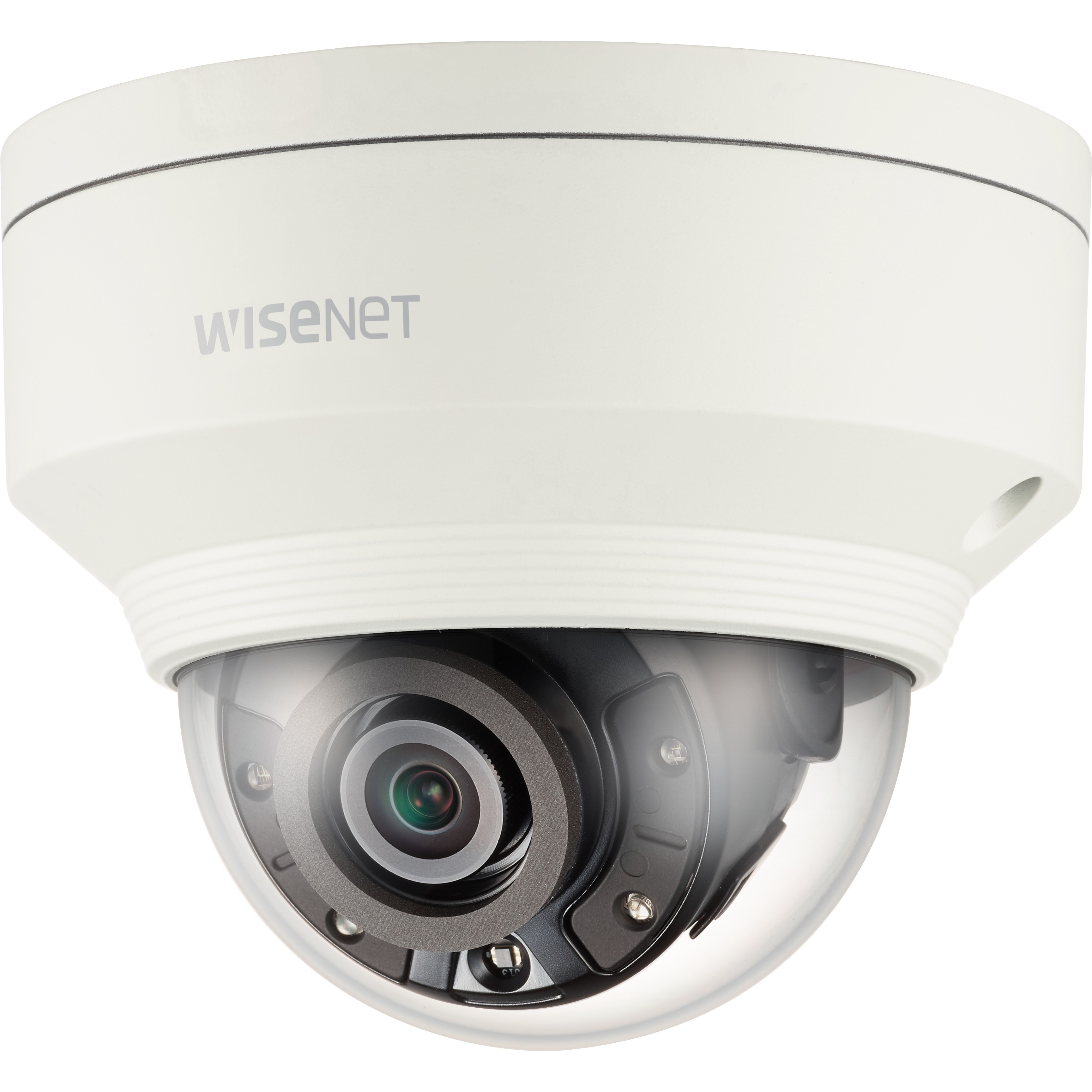

WiseNet X powered by WiseNet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, 3.7mm fixed focal lens (97.5°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X
General Information | |
Manufacturer | Hanwha Group |
Manufacturer Part Number | XNV-8020R |
Manufacturer Website Address | http://www.hanwha.com |
Brand Name | Hanwha Techwin |
Product Line | WiseNet |
Product Series | X |
Product Model | XNV-8020R |
Product Name | 5M Vandal-Resistant Network IR Dome Camera |
Product Type | Network Camera |
Technical Information | |
HD Recording | Yes |
Night Vision Distance | 98.43 ft |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Color Supported | Monochrome |
Effective Camera Resolution | 5 Megapixel |
Video | |
Video Formats | H.264 |
Video Formats | H.265 |
Video Formats | MPEG-4 AVC |
Video Formats | Motion JPEG |
Maximum Video Resolution | 2560 x 1920 |
Lens | |
Maximum Focal Length | 3.70 mm |
Network & Communication | |
Connectivity Technology | Cable |
Remote Management | Yes |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Physical Characteristics | |
Placement | Corner Mount |
Placement | Parapet Mount |
Placement | Pole Mount |
Placement | Wall Mount |
Form Factor | Dome |
Height | 3.8" |
Diameter | 4.7" |
Weight (Approximate) | 1.36 lb |
Warranty | |
Limited Warranty | 3 Year |
