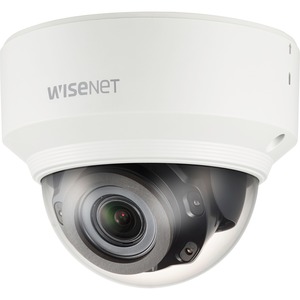

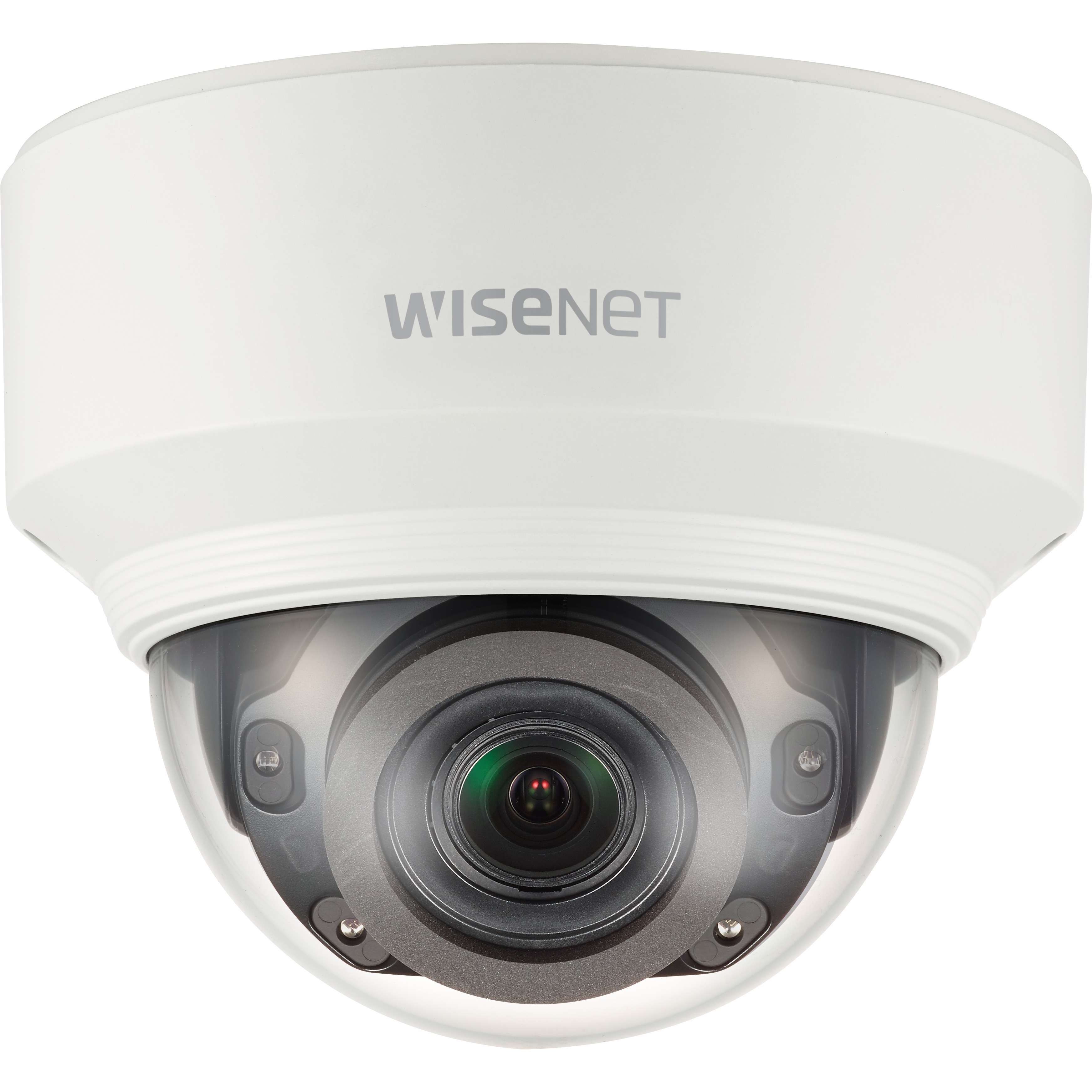

Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps WDR off/on, Motorized Vari-Focal Lens 2.4x (3.9~9.4mm) (92.1°~38.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/PoE, IK08
General Information | |
Manufacturer | Hanwha Group |
Manufacturer Part Number | XND-8080RV |
Manufacturer Website Address | http://www.hanwha.com |
Brand Name | Wisenet |
Product Series | X |
Product Model | XND-8080RV |
Product Name | 5MP Network IR Dome Camera |
Product Type | Network Camera |
Technical Information | |
Recording Formats | Full HD |
HD Recording | Yes |
Night Vision | Yes |
Night Vision Distance | 98.43 ft |
Night Vision Type | Infrared |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Field of View | H : 92.1° ~ 38.7° / V : 67.2° ~ 29.0° / D : 119.9° ~ 48.6° |
Effective Camera Resolution | 4 Megapixel |
Video | |
Video Formats | H.265 |
Video Formats | H.264 |
Video Formats | MJPEG |
Video Formats | MPEG-4 AVC |
Maximum Video Resolution | 2560 x 1920 |
Maximum Frame Rate | 30 fps |
Lens | |
Lens Type | Varifocal |
Minimum Focal Length | 3.90 mm |
Maximum Focal Length | 9.40 mm |
Lens Included | Yes |
Lens Mount Type | Board Mount |
Maximum Aperture | f/1.3 |
Optical Zoom | 2.4x |
Exposure | |
Shortest Shutter Speed | 1/12000 Second |
Longest Shutter Speed | 2 Second |
Network & Communication | |
Connectivity Technology | Wired |
Remote Management | Yes |
Storage | |
Storage Type | Memory Card |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Power Description | |
Input Voltage | 12 V DC |
Power Source Type | DC |
Power Source Type | PoE |
Physical Characteristics | |
Mount Type | Corner Mount |
Mount Type | Wall Mount |
Mount Type | Parapet Mount |
Mount Type | Pole Mount |
Form Factor | Dome |
Durability | Vandal Resistant |
Color Family | White |
Product Color | Ivory |
Height | 4.4" |
Diameter | 5.5" |
Weight (Approximate) | 1.61 lb |
Environmental Conditions | |
Minimum Operating Temperature | 14°F (-10°C) |
Maximum Operating Temperature | 131°F (55°C) |
Maximum Operating Humidity | 90% |
Miscellaneous | |
Features | Digital Image Stabilization |
Features | Alarm Triggering |
Features | Privacy Masking |
Features | Digital Noise Reduction |
Features | Back Light Compensation (BLC) |
Features | Gain Control |
Features | Defog |
Features | Day/Night |
Features | White Balance |
Features | Motion Detection |
Impact Protection Rating | IK08 |
NDAA Compliant | Yes |
Warranty | |
Limited Warranty | 3 Year |
