General Information | |
Manufacturer | Hanwha Group |
Manufacturer Part Number | XND-6080RV |
Manufacturer Website Address | http://www.hanwha.com |
Brand Name | Wisenet |
Product Series | X |
Product Model | XND-6080RV |

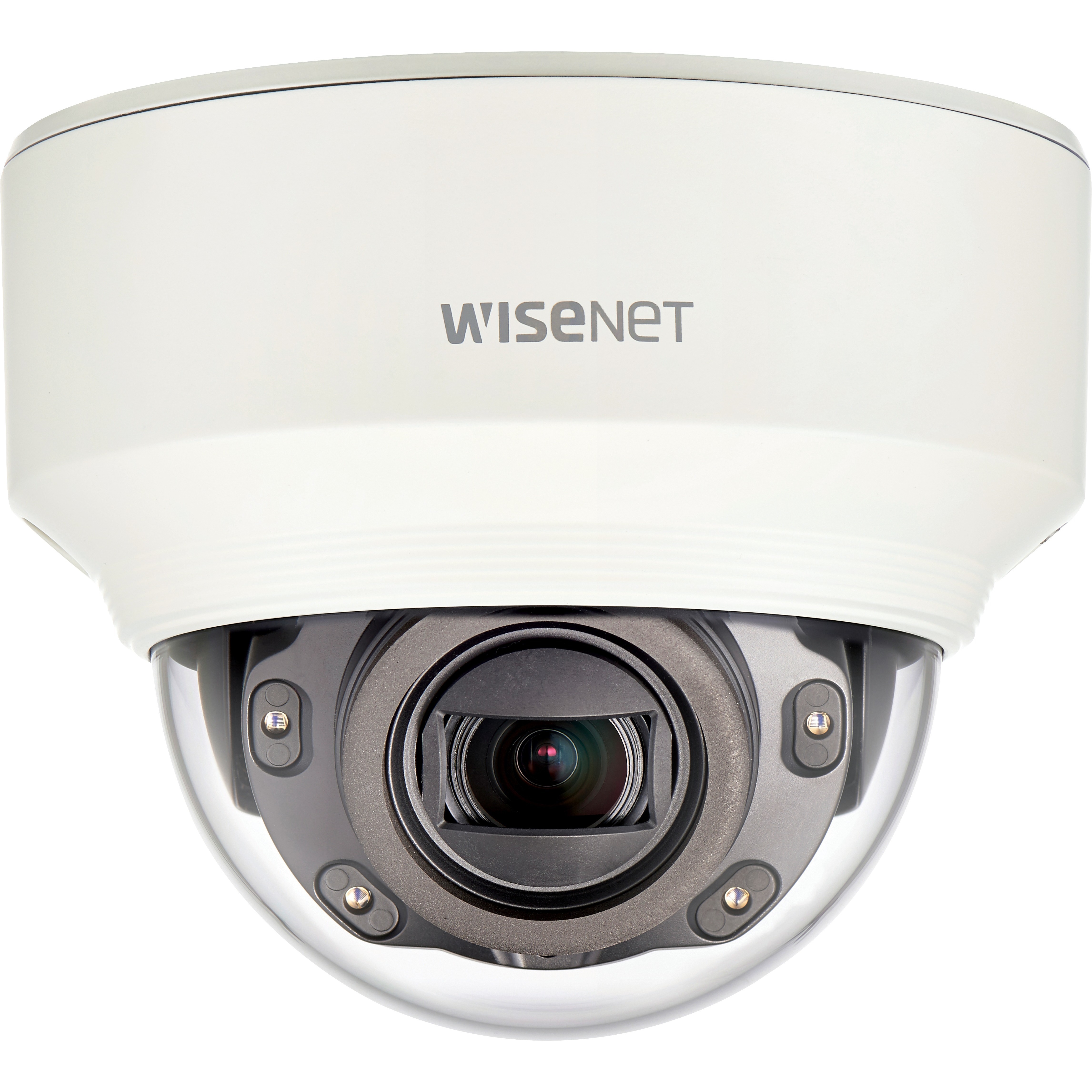

Product Name | 2MP Network IR Dome Camera |
Product Type | Network Camera |
Technical Information | |
HD Recording | Yes |
Recording Formats | Full HD |
Night Vision | Yes |
Night Vision Distance | 98.43 ft |
Night Vision Type | Infrared |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Field of View | H : 119.5° ~ 27.9° / V : 62.8° ~ 15.7° / D : 142.1° ~ 32.0° |
Effective Camera Resolution | 2 Megapixel |
Video | |
Video Formats | MJPEG |
Video Formats | MPEG-4 AVC |
Video Formats | H.264 |
Video Formats | H.265 |
Maximum Video Resolution | 1920 x 1080 |
Maximum Frame Rate | 60 fps |
Lens | |
Lens Type | Zoom |
Minimum Focal Length | 2.80 mm |
Maximum Focal Length | 12 mm |
Lens Included | Yes |
Lens Mount Type | Board Mount |
Minimum Aperture | f/3.6 |
Maximum Aperture | f/1.4 |
Optical Zoom | 4.3x |
Exposure | |
Shortest Shutter Speed | 1/12000 Second |
Longest Shutter Speed | 2 Second |
Network & Communication | |
Connectivity Technology | Wired |
Remote Management | Yes |
Storage | |
Storage Type | Memory Card |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Power Description | |
Input Voltage | 12 V DC |
Power Source Type | PoE |
Power Source Type | DC |
Physical Characteristics | |
Product Color | Ivory |
Mount Type | Corner Mount |
Mount Type | Parapet Mount |
Mount Type | Pole Mount |
Mount Type | Wall Mount |
Form Factor | Dome |
Height | 4.4" |
Diameter | 5.5" |
Weight (Approximate) | 1.60 lb |
Environmental Conditions | |
Minimum Operating Temperature | 14°F (-10°C) |
Maximum Operating Temperature | 131°F (55°C) |
Operating Humidity | 90% |
Miscellaneous | |
Features | Digital Image Stabilization |
Features | SD Card Local Storage |
Features | PTZ |
Features | Motion Detection |
Features | Privacy Masking |
Features | Digital Noise Reduction |
Features | Day/Night |
Features | Back Light Compensation (BLC) |
Features | White Balance |
Features | Gain Control |
Indoor/Outdoor | Indoor |
Impact Protection Rating | IK08 |
Warranty | |
Limited Warranty | 3 Year |
